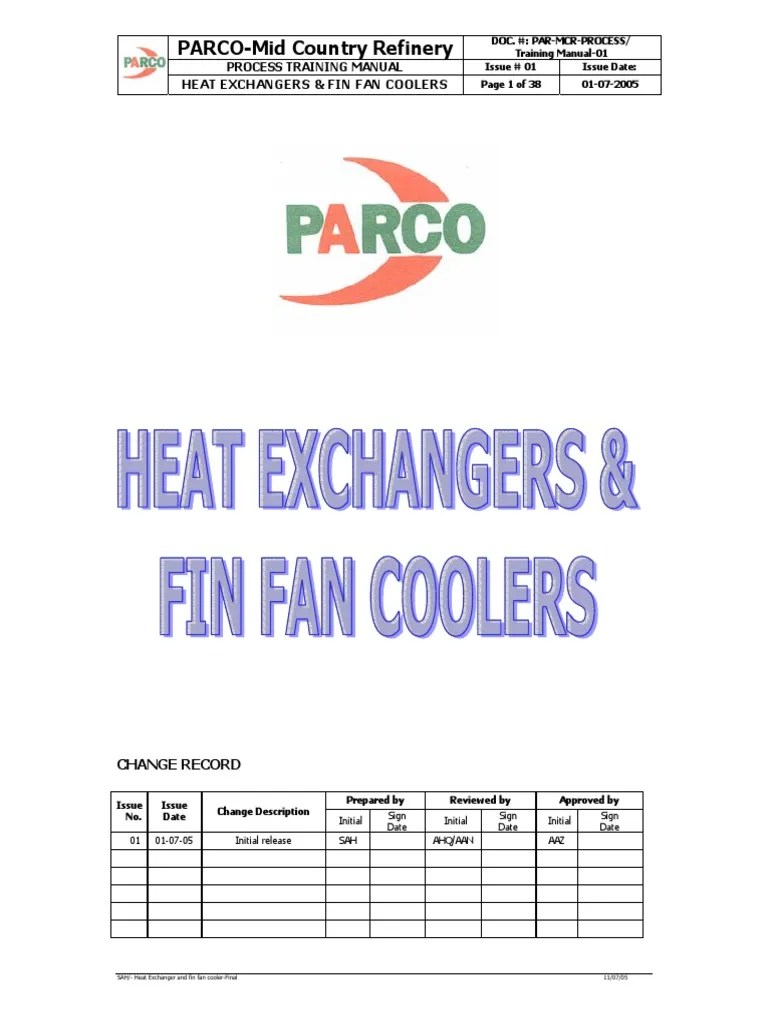

Heat Exchanger And Fin Fan Cooler-Final | PDF | Heat Exchanger | Heat ...

Heat Exchanger And Fin Fan Cooler-Final | PDF | Heat Exchanger | Heat ... This video explain assembly sequence of air cooled heat exchanger (fin fan or air cooler). watch and subscribe @technical piping channel for more updates .more. Animated video tutorial of the assembly sequence of an air cooled heat exchanger refer to the below attached animated video for proper understanding and visualization of each part of a forced draft type air fin fan cooler.

China Customized High Efficient Fin Fan Air Cooled Heat Exchanger ...

China Customized High Efficient Fin Fan Air Cooled Heat Exchanger ... There are different standard geometries for air cooled heat exchangers. the geometries are related to a compromise in between cost of construction and efficiency of the heat exchanger. A fin fan is an air cooled heat exchanger. instead of dissipating heat into water and then transferring that heat to the air, as with shell and tube heat exchangers and wet cooling tower systems, a fin fan dissipates heat from a fluid directly into the air. Air cooled heat exchanger (fin fan) working principle explained. discover how it works, key parts, and why industry prefers air over water cooling. This document provides engineering design guidelines for air cooled fin fan heat exchangers. it includes sections on definitions, theory, equipment for cold climates, tube bundle construction, heat transfer coefficients, and applications with examples.

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ...

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ... Air cooled heat exchanger (fin fan) working principle explained. discover how it works, key parts, and why industry prefers air over water cooling. This document provides engineering design guidelines for air cooled fin fan heat exchangers. it includes sections on definitions, theory, equipment for cold climates, tube bundle construction, heat transfer coefficients, and applications with examples. Except for those with diameters of less than 5 ft (1.53 m), most air cooled heat exchangers have fans with adjustable blade pitch. the pitch can be changed manually or automatically; the adjusting mechanism is pneumatic on smaller fans and electrical on larger sizes. Knowing how to design and size these heat exchangers is crucial in a variety of industries like oil upgrading and refining, gas processing, petro chemical, and lng. here, we walk you through the whole process from start to finish for designing an air cooled heat exchanger. Built for tough cooling duties in the upstream, midstream and downstream gas compression and gas processing industries, alfa laval air coolers offer robust, rugged and efficient cooling. The structure consists of columns, braces, and cross beams that support the exchanger at a sufficient elevation above grade to allow the necessary volume of air to enter below at an approach velocity low enough to allow unimpeded fan performance and to prevent unwanted recirculation of hot air.

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ...

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ... Except for those with diameters of less than 5 ft (1.53 m), most air cooled heat exchangers have fans with adjustable blade pitch. the pitch can be changed manually or automatically; the adjusting mechanism is pneumatic on smaller fans and electrical on larger sizes. Knowing how to design and size these heat exchangers is crucial in a variety of industries like oil upgrading and refining, gas processing, petro chemical, and lng. here, we walk you through the whole process from start to finish for designing an air cooled heat exchanger. Built for tough cooling duties in the upstream, midstream and downstream gas compression and gas processing industries, alfa laval air coolers offer robust, rugged and efficient cooling. The structure consists of columns, braces, and cross beams that support the exchanger at a sufficient elevation above grade to allow the necessary volume of air to enter below at an approach velocity low enough to allow unimpeded fan performance and to prevent unwanted recirculation of hot air.

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ...

Fin Fan Air Cooled Heat Exchanger,oil And Air Heat Exhanging ... Built for tough cooling duties in the upstream, midstream and downstream gas compression and gas processing industries, alfa laval air coolers offer robust, rugged and efficient cooling. The structure consists of columns, braces, and cross beams that support the exchanger at a sufficient elevation above grade to allow the necessary volume of air to enter below at an approach velocity low enough to allow unimpeded fan performance and to prevent unwanted recirculation of hot air.
