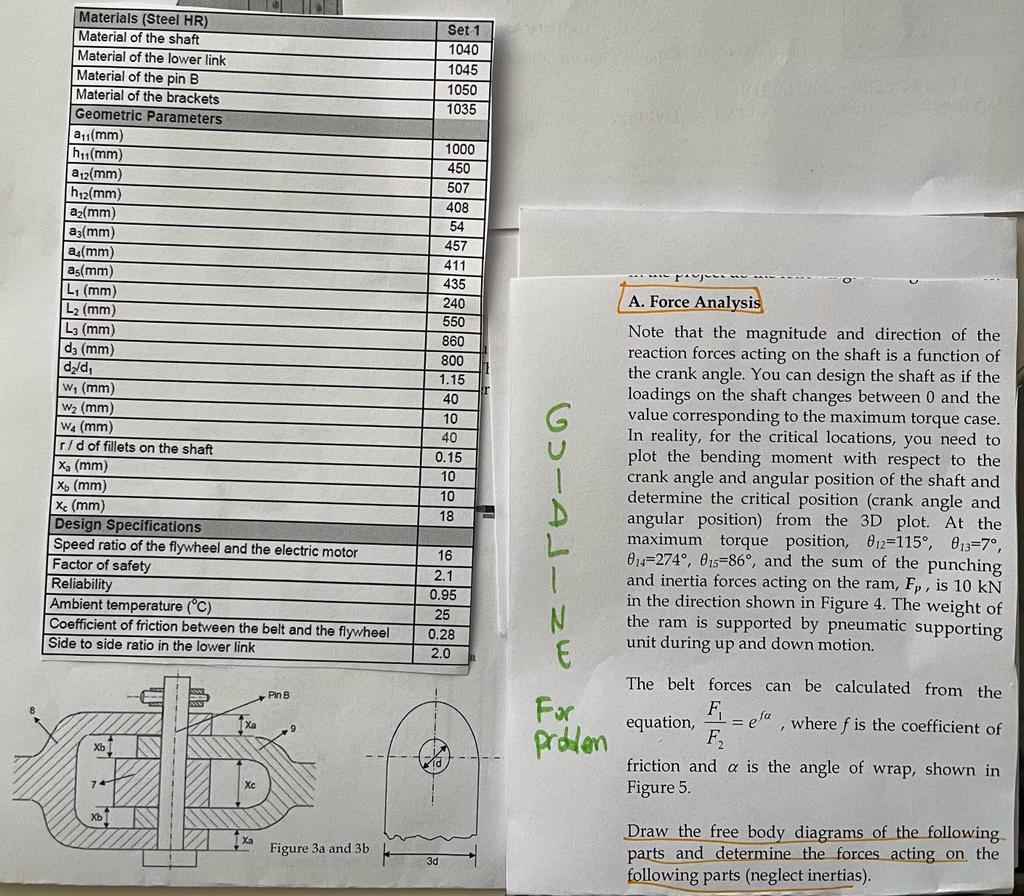

Solved Pin Design The Fit Of The Pin B Is H7 F7 Design The Chegg Question: pin design the fit of the pin b is h7 f7. design the pin b for static case by considering bending and contact stresses. use maximum shear stress theory. bar 7 is oriented to the page and it is pulling pin b towards to the page. f = 1397 n bar 8 pulls the pin b towards to the left. f = 9853.1 n bar 9 pulls the pin b towards to the right. Fits and tolerance calculator for shaft and hole tolerance calculation according to iso 286 1 and ansi b4.2 metric standards . the schematic representation of the fit is also drawn by tolerance calculator.
Solved 1 Determine The Diameter Of The Pin B And Specify An Chegg Draw the shear force and the bending moment diagrams of pin co.b. design pin co for static case by considering bending, contact and shear stresses. use the maximum shear stress theory.note that one should select a pin diameter that is compatible with the preferred sizes. The lower limit of the hole is above the upper limit of the shaft, hence hole diameter is always bigger than the shaft diameter so the fit will be a clearance fit. Using tables to be found online (as suggested in the lectures exercises), design an interference fit between a pin and a hole. the pin hole nominal diameter will be 50 mm, and the fit will be class "hole h7 pin p6". Understand that the fit designation p7 h6 refers to a type of locational interference fit from the ansi b4.2 standard.
Solved The Fit Of The Pin 8 Is H F T De Ion The Pin 3 By Chegg Using tables to be found online (as suggested in the lectures exercises), design an interference fit between a pin and a hole. the pin hole nominal diameter will be 50 mm, and the fit will be class "hole h7 pin p6". Understand that the fit designation p7 h6 refers to a type of locational interference fit from the ansi b4.2 standard. I was just shocked to see that h723 and h735 are not pin to pin compatible, at least in lqfp 144. shoot, i thought i could switch between h723 725 733 735 if necessary. Some of the selected preferred fits: h7 h6, h8 h7, h8 h9, h8 h8, location slight interference; this type of fit compromise between interference and clearance for accurate location. with this fit, the parts can be assemble or disassemble without great force using a rubber mallet. Mechanical engineering questions and answers please design the pin b. the fit of the pin b is h7 f7. design the pin b for static case by considering bending and contact stresses. use maximum shear stress theory. your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. So my idea is to design the board in such a way that i can choose the stm32 controller that fits the application at assembly time. is there a document or other information about which stm32f7 or stm32h7 controllers are pin compatible?.
Solved Please Design The Pin B ï The Fit Of The Pin B Is Chegg I was just shocked to see that h723 and h735 are not pin to pin compatible, at least in lqfp 144. shoot, i thought i could switch between h723 725 733 735 if necessary. Some of the selected preferred fits: h7 h6, h8 h7, h8 h9, h8 h8, location slight interference; this type of fit compromise between interference and clearance for accurate location. with this fit, the parts can be assemble or disassemble without great force using a rubber mallet. Mechanical engineering questions and answers please design the pin b. the fit of the pin b is h7 f7. design the pin b for static case by considering bending and contact stresses. use maximum shear stress theory. your solution’s ready to go! our expert help has broken down your problem into an easy to learn solution you can count on. So my idea is to design the board in such a way that i can choose the stm32 controller that fits the application at assembly time. is there a document or other information about which stm32f7 or stm32h7 controllers are pin compatible?.
