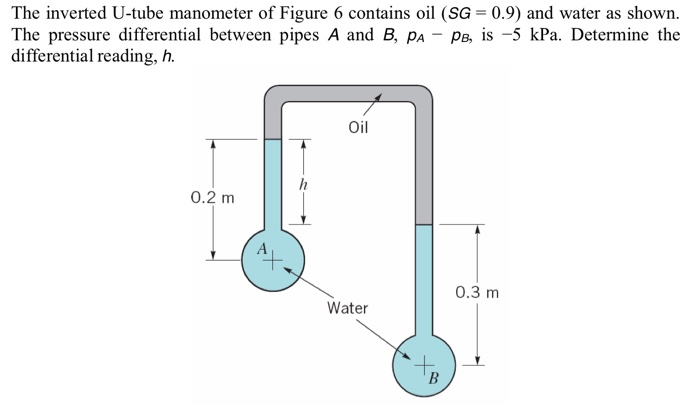

Inverted U Tube Manometer Lect No 8 Pdf Question: the inverted u tube manometer of figure 6 contains oil (sg = 0.9) and water as shown. the pressure differential between pipes a and b, pa pb, is 5 kpa. determine the differential reading, h. oil 0.2 m 0.3 m water b. there’s just one step to solve this. Fluid mechanics 2.40 the inverted u tube manometer of fig. p2.40 contains oil (sg = 0.9) and water as shown. the pressure differential between pipes a and b, pa pb, is 5 kpa.
Solved The Inverted U Tube Manometer Of Figure 6 Contains Chegg This document contains practice problems involving differential manometers and inverted u tube manometers. it includes 4 problems asking students to calculate pressure differences or manometer readings given information about the specific gravities of the liquids in pipes connected to manometers, and the measured heights of liquids in the. An inverted u tube manometer containing oil (sg = 0.8) is located between two reservoirs as shown in the figure. the reservoir on the left, which contains carbon tetrachloride, is. Water flows through a pipe reducer as is shown in figure. the static pressures at (1) and (2) are measured by the inverted u tube manometer containing oil of specific gravity, sg, less than one. determine the manometer reading, h. the manometer reading, h, is equal to the acceleration due to gravity, g. Question: the inverted u tube manometer of figure 6 contains oil (sg = 0.9) and water as shown. the pressure differential between pipes a and b, pa prp is –5 kpa.
Solved 2 The Inverted U Tube Manometer Of The Figure Chegg Water flows through a pipe reducer as is shown in figure. the static pressures at (1) and (2) are measured by the inverted u tube manometer containing oil of specific gravity, sg, less than one. determine the manometer reading, h. the manometer reading, h, is equal to the acceleration due to gravity, g. Question: the inverted u tube manometer of figure 6 contains oil (sg = 0.9) and water as shown. the pressure differential between pipes a and b, pa prp is –5 kpa.
Solved The Inverted U Tube Manometer Of The Figure Chegg
Solved A U Tube Manometer Contains Oil Mercury And Water Chegg
Solved 1 The Inverted U Tube Manometer Contains Oil Sg Chegg
